Pro-Series Vibroacoustic Therapy Bed - DIY Bundle

Upgrade Your Practice: Convert Any Massage Table into a High-Performance Vibroacoustic Therapy System

Product Summary

Discover a new dimension of somatic resonance with our Pro-Series Vibroacoustic Therapy (VAT) Bundle. This groundbreaking system is engineered to seamlessly integrate with any standard massage table, turning it into a powerful tool for profound sound-based healing. By merging deep, low-frequency vibrations with the restorative art of massage, this bundle provides an essential upgrade for any wellness professional, spa, or therapist looking to offer a truly advanced therapeutic experience that enhances client wellness goals and builds a reputation for cutting-edge service.

Transform Your Table into a Somatic Recovery Station The most advanced tool in modern bodywork is no longer just the practitioner's hands—it is the table itself. The Professional Vibroacoustic Massage Table Attachment Kit is a high-performance integration system designed to transform any standard massage table into a state-of-the-art somatic recovery tool. By translating audio-driven signals into deep, full-body mechanical resonance, this system allows you to provide a "bottom-up" physiological reset that traditionally took hours to achieve.

The Clinical "Co-Therapist" Advantage For the professional massage therapist or physical therapist, this kit acts as a silent partner. By delivering a targeted tactile pulse (operating within the clinical 20 Hz to 200 Hz range) directly through the table frame, the system physically warms up the client's fascial network and increases local microcirculation before you even make physical contact. This reduces "practitioner fatigue" by allowing you to achieve deeper myofascial release with significantly less manual effort, extending your career and preserving your energy.

Key Product Features

✨ Advanced Vibroacoustic Technology

High-Performance Transducer System: This system is built around two high-performance 50-Watt RM (100W pair), 4-Ohm main transducers (2-Ohm parallel setup). They are precision-engineered to deliver powerful, therapeutic vibrations in the 20Hz-200Hz frequency range. The satellite transducers (included in Deluxe/Premium) operate in this low freqency range but are connected to the amp's full-spectrum output, allowing them to produce subtle, audible harmonics for a more immersive, "sound-from-within" experience.

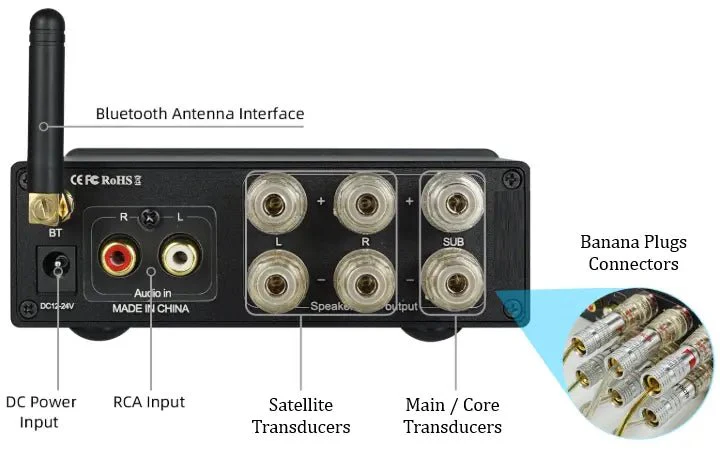

High-Fidelity Custom Amplifier: The command center is a professional 200-Watt Max Power Bluetooth-enabled amplifier, featuring discrete outputs:
- Subwoofer/Main Transducer Output: Delivers clean power to the main 50W RMS transducers, generating the deep, tactile vibrations (20Hz-200Hz) essential for vibrational resonance.
- Stereo/Small Transducer Output: Offers a full-range signal, powering the satellite transducers to create both vibration and subtle, audible sound.
- Power & Safety Note: The main transducers are rated for 50 Watts RMS. The amplifier's output provides powerful, distortion-free vibrations. It is not recommended to run the system at or close to maximum volume. Exceptional vibrational immersion is achieved at comfortable levels well below the peak, ensuring client safety and system longevity
Dual-Sensory Sound Integration: This is a true dual-sensory system. Clients feel the deep vibrations while simultaneously hearing the high-fidelity audio through headphones (or room speakers in the Premium bundle), leading to a state of profound relaxation and meditation.

🔧Professional Installation & Universal Compatibility

Universal Fit: Engineered for versatility, the attachment system fits most standard massage tables (28" - 32" wide).
Effortless Installation: Quick setup is a breeze. Our tool-free system uses a durable, high-strength permanent tape adhesive for a secure, vibration-dampened bond to your table's frame.
Durable Construction: Built with commercial-grade materials, this system is designed to withstand the rigors of daily professional use.

📱 Smart Connectivity & Precision Control

Bluetooth 5.0 Technology: Connect wirelessly with rock-solid stability to any smartphone, tablet, or device. Easily stream therapeutic frequency tracks, music, or guided meditations.
RCA In Input: Connect using RCA to AUX audio cable from any music device.
Multi-Device Compatibility: Fully compatible with iOS, Android, and Windows operating systems.
Adjustable Intensity: Provides complete control over the experience. Fine-tune the vibration levels from a gentle, soothing hum to a deep, penetrating tactile resonance.

Choose Your Perfect Bundle

We offer three curated packages to suit your professional needs and budget.

Bundle	Standard (50W)	Deluxe (50W)	Premium (50W)
Best For	Deep Tissue/Therapeutic	Clinical/Spa Use	Premium Luxury treatments
Main Transducers	2x 50-Watt (8" Round, ~2" High)	2x 50-Watt (8" Round, ~2" High)	2x 50-Watt (8" Round, ~2" High)
Main Transducer Frequency	20Hz – 200Hz	20Hz – 200Hz	20Hz – 200Hz
Satellite Transducers	None	4x Satellite Transducers	6x Satellite Transducers
Total Transducers	2 Units	6 Units	8 Units
Bluetooth Amplifier	Included	Included	Included
Headphones	Included	Included	Included
Portable Headphone Amp	Not Included	Included	Not Included (Upgraded)
Powered Headphone Amp	Not Included	Not Included	Included
External Speakers	Not Included	Not Included	Included

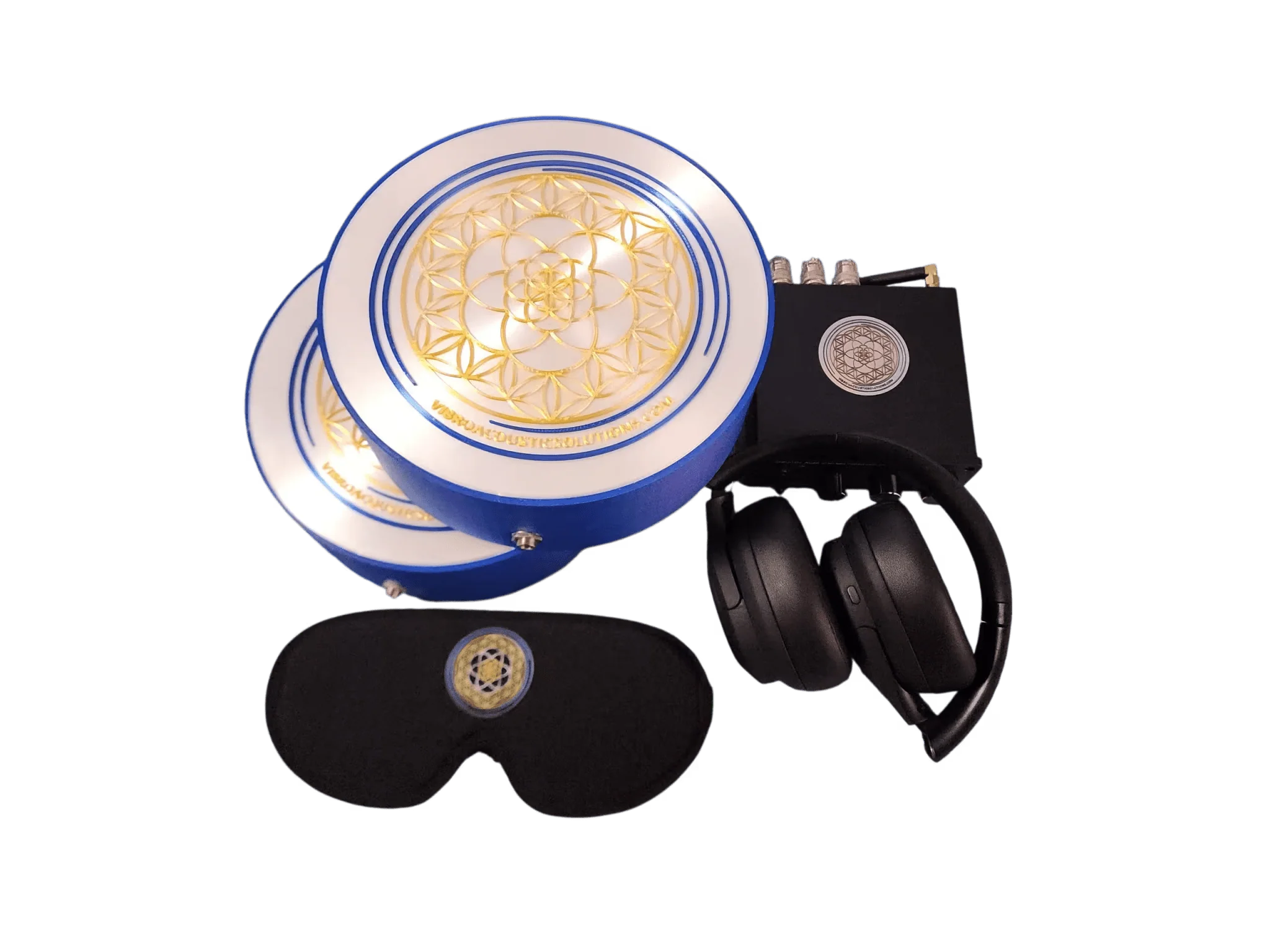

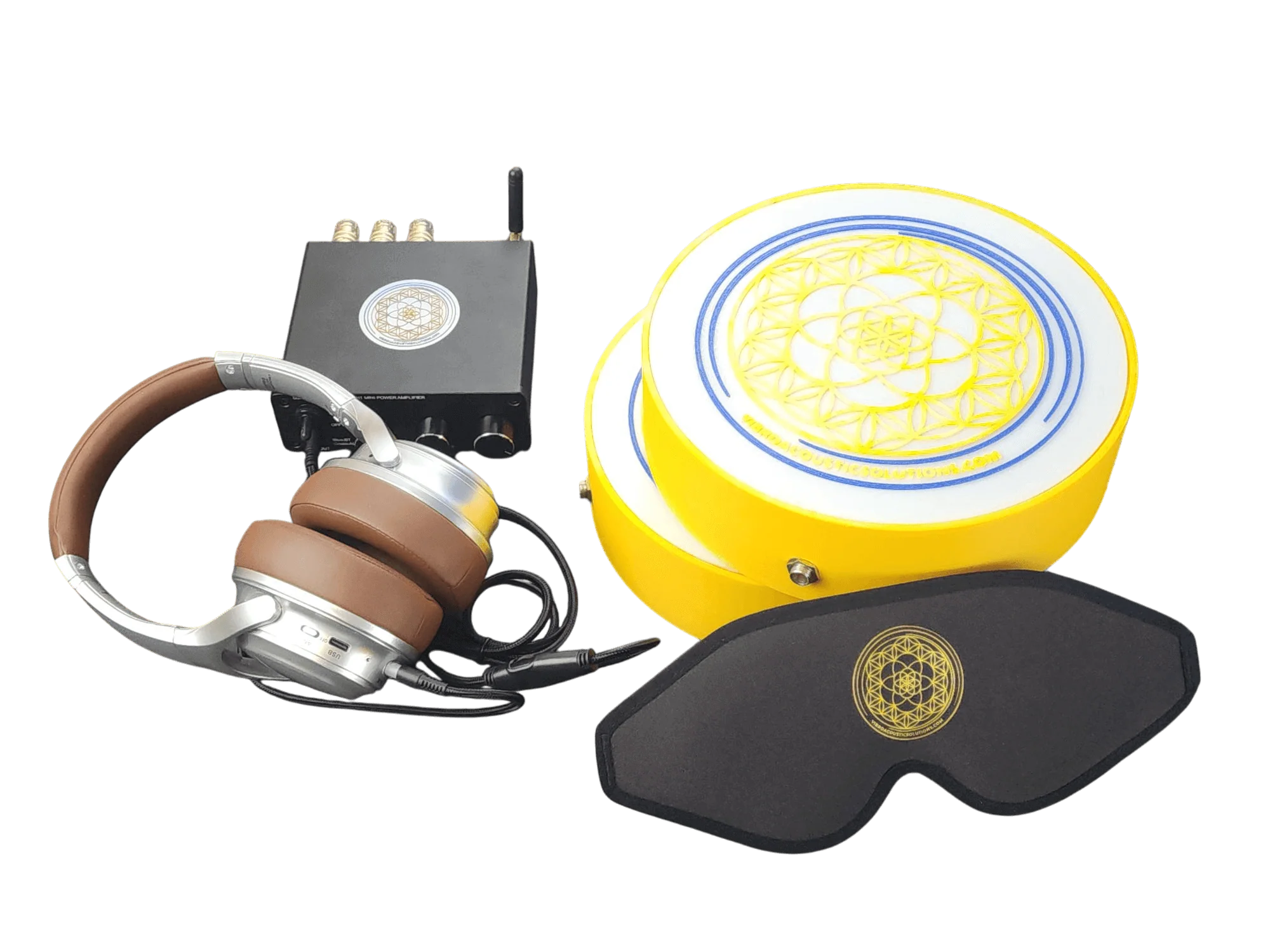

1. Standard Bundle: The Professional Foundation

Ideal for practitioners looking to integrate a powerful, foundational vibroacoustic tool into their services.

What's Included:
- (2x) Main Vibroacoustic Attachment Units: Each housing a 50-Watt RMS transducer (20-200Hz).
- Custom Bluetooth Amplifier: With specialized outputs and an integrated 3.5mm auxiliary headphone output (transducers active while headphones in use).
- Professional Over-Ear Headphones: For client's audio immersion.
- Complete Cable Kit: Includes a 3.5mm auxiliary cable, amplifier power cable, and all necessary transducer connection cables.
- Comfort Eye Mask
- Comprehensive User Manual

2. Deluxe Bundle: Full-Body Immersion

Designed for the practitioner who wants to offer a more comprehensive and enveloping therapeutic experience with full-body vibration.

Includes everything in the Standard Bundle, PLUS:
- (4x) Small Satellite Transducer Units: Each with a 15-Watt RMS transducer. These units provide precise vibration distribution and may also produce subtle audible sound from the full-range signal, enhancing the immersive experience.
- Portable High-Fidelity Headphone Amplifier: A dedicated single-output amplifier that provides a cleaner, more powerful, and isolated audio signal to the headphones, ensuring your client hears every detail.

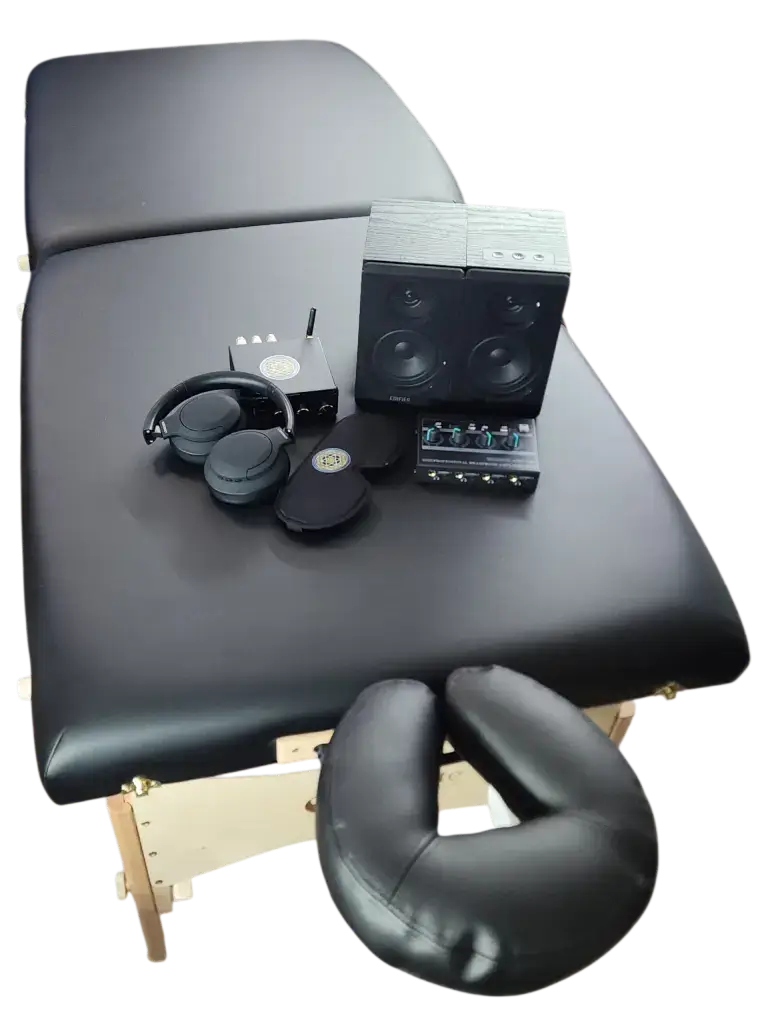

3. Premium Bundle: The Ultimate Sensory Experience

Our pinnacle offering for premier wellness centers. This bundle delivers an unparalleled multi-sensory environment with the most comprehensive vibration array.

Includes everything in the Deluxe Bundle, with these KEY UPGRADES:
- Enhanced Full-Body Array: Features a total of (6x) Small Satellite Transducer Units (two more than the Deluxe) for the most detailed and comprehensive distribution of vibration across the entire body.
- Professional Powered Headphone Amplifier: This studio-grade, mains-powered headphone amplifier replaces the portable unit, offering ultra-low distortion and exceptional power for the most pristine audio reproduction.
- Edifier R33BT Active Bluetooth Bookshelf Speakers: A set of high-quality room speakers. Their classic wooden enclosure minimizes acoustic resonance, filling the room with rich, detailed sound.
- Seamless Integration: The Professional Headphone Amplifier powers both the client's headphones and the Edifier speakers, creating a complete, immersive sound field for the entire room.

Technical Specifications

Electrical Requirements:
- Power Supply: Universal AC adapter (110-240V, 50-60Hz)
- Power Consumption: Maximum 150W during operation
Physical Dimensions:
- Main 50-Watt Attachment Unit: 8" L x 8" W x 2.2" H , 2lb
- Mini 15-Watt Attachment Unit: 4" L x 4" W x 1.4" H , 0.75lb
- Amplifier:5" L x 5" W x 1.5" H
Total Weight:
- Standard Bundle: Approx. 8 lbs
- Deluxe & Premium Bundles: Approx. 12 lbs
Shipping Weight: Approx. 14-20 lbs with packaging

Therapeutic Benefits & Professional Applications

For Your Clients: Facilitates profound stress reduction, promotes healthy circulation and lymphatic flow, supports discomfort management, encourages better sleep patterns, and helps assists in muscle recovery.
For Your Practice: Introduce a high-value, in-demand service to increase revenue. Build client loyalty and generate referrals with a unique, unforgettable experience. Gain a distinct competitive edge in your market.
Ideal For: Licensed Massage Therapists, Physical Therapy Clinics, Wellness Centers, Spas, Chiropractic Offices, Holistic Health Practitioners, and Rehabilitation Centers.
Enhances Modalities: Deep Tissue Therapy, Sports Recovery, Swedish Massage, Stress Reduction Treatments, Comfort Management Protocols, and Meditation Sessions.

Installation & Setup

A comprehensive guide is included. The simple 5-step process (Prepare, Mount, Connect, Power, Test & Calibrate) will have your system running in under 30 minutes. Please follow all instructions for proper and safe setup.

Customer Support & Warranty

Warranty Coverage: 1-year manufacturer warranty on all electronic components and a 1-year warranty on all mechanical components.
Technical Support: Our dedicated customer service team is available via chat and email to assist you.
Training Resources: Access online video tutorials and detailed setup assistance.

Modular & Upgradable: A System That Grows With You

Our entire Pro-Series ecosystem is fully modular, designed to scale with your success.

Easy Upgrade Path: Begin with our powerful Standard Bundle and purchase upgrade kits whenever you're ready. You can easily add small transducers to reach the Deluxe level or integrate the full audio package for the Premium experience.
Flexible Investment: This convenient upgrade path allows you to spread out your investment and add new components as funds become available. While purchasing the Premium Bundle upfront offers the greatest overall savings, our modular design ensures you have the flexibility to build your ultimate therapeutic system at your own pace.
Expansion Capabilities: The included amplifier supports up to two main transducers and eight small transducers. For the ultimate setup, the system can be expanded with an additional amplifier to power up to four main transducers and eight small transducers simultaneously.
Multi-Table Portability (Experimental): For practitioners with multiple massage tables, we are currently testing an optional slider add-on. This system allows a single set of transducer attachments to be portable and interchangeable between two or more tables. This option is experimental and available for purchase by request only at this time.
Custom Bundles: Have a specific need or setup in mind? Custom bundles are available by request. Contact our team to design the perfect vibroacoustic system for your practice.

Disclaimer: The actual colors of attachment units may vary. The headphones pictured are for demonstration purposes only; actual model provided may vary based on availability but will meet professional quality standards.

Professional Resources & Technical Implementation Suite

To ensure you achieve the highest therapeutic standards and system longevity, we provide a comprehensive collection of Technical Implementation Guides and Practitioner Resources. These documents cover everything from the biological foundations of 30–120 Hz frequencies to the official technical standards for professional-grade installation.

Download your professional guides below:

Quick Setup Guide for Vibroacoustic Therapy Systems
The "Fast-Track" Protocol: Essential information for the immediate deployment and safety-first connection of your Vibroacoustic Table attachments.
Implementation & Science of Vibroacoustic Therapy (VAT)
The Biological Blueprint: An essential summary of the scientific foundations, tactile resonance principles, and specific protocols required for effective sessions.
Visual Placement Strategies: Core & Satellite Transducer Configurations
Optimizing "Core Saturation": Detailed visual maps on positioning Main Core Transducers (targeting the Thoracic and Lumbar sections) and Satellite Transducers for maximum full-body immersion.
Standard Operating Procedure (SOP) & Installation Guide for Vibroacoustic Therapy Systems
Official Technical Standards: Our detailed manual for professional installation, electronic integration, and clinical operation of the Vibroacoustic Therapy Systems.
Standard Operating Procedure: Amplifier Connection & Operation
High-Fidelity Integration: A dedicated technical guide for the daily operation of your custom amplifier, including Bluetooth/RCA setup and Tuning & Session Management.

⚠️ FDA Compliance & Wellness Notice

General Wellness Focus: This Vibroacoustic Therapy Equipment is classified as a General Wellness Device. It is designed to support relaxation, manage everyday stress, and enhance the overall sensory experience of professional wellness protocols.

No Medical Claims: These statements have not been evaluated by the Food and Drug Administration. This product is not intended to diagnose, treat, cure, or prevent any disease. It is a tool for supporting a healthy lifestyle and promoting a restorative state of being under IRS Section 213(d) guidelines for clinical research and therapeutic support.

⚠️ Safety & Contraindications

Vibroacoustic Therapy is generally safe for the majority of users; however, it should NOT be used by individuals with the following conditions without prior medical consultation:

Electronic Implants: Individuals with pacemakers or other implanted electronic devices (due to magnetic components in the transducers).
Pregnancy: Not recommended for use during pregnancy.
Circulatory Issues: History of blood clots or Deep Vein Thrombosis (DVT).
Recent Injuries: Recent surgeries, acute inflammatory conditions, or heart attacks.
Neurological Sensitivity: Severe epilepsy or seizure disorders sensitive to vibration.

Immediate Stop: Discontinue use immediately if you experience dizziness, discomfort, or any adverse physical reaction.

FAQ:

Q: Why is this kit called the "Pro-Series"?

A: The Pro-Series utilizes 50W high-torque transducers with full SUB range of 20Hz-200Hz, providing significantly more "vibrational heft" than standard consumer kits. It is engineered for the duty cycles of professional clinics where the system may be in use for 6–8 hours daily.

Q: Can I use this with a portable folding table?

A: Yes. However, due to the 2.2" height of the main transducers, we recommend an "Interlocking Offset" layout. This ensures that when the table is folded, the hardware on one side nestles into the empty spaces of the other, allowing the table to close fully for transport.

Q: What is the difference between the Subwoofer and Stereo outputs?

A: The Subwoofer output is dedicated to the Main Transducers ( $20\text{Hz} - 200\text{Hz}$ ) to provide the "felt" vibration. The Stereo output ( $20\text{Hz} - 20,000\text{Hz}$ ) allows the satellite transducers to provide both subtle vibration and audible harmonics, creating a more immersive, multi-sensory environment.

Q: Is the installation permanent?

A: Yes. We use industrial-strength 3M™ VHB™ tape to ensure a molecular bond. This prevents the hardware from rattling at high intensities and ensures maximum energy transfer from the transducer to the table frame.

Installation Guide for Vibroacoustic Massage Table Attachments

This guide provides step-by-step instructions to install the Vibroacoustic Therapy Massage Table Attachments with custom amplifier bundle on any standard massage or folding table. Following these procedures ensures optimal attachment performance, safe operation, and long-lasting adhesion using 3M VHB™ tape.

1. Prepare the Table Surface

1.1 Clean the Underside

Before installing attachments, flip the table and thoroughly clean the underside where the vibroacoustic boxes will be mounted. Use a non-perfumed cloth and an isopropyl alcohol solution (70% IPA, 30% water) to remove dust, oils, and residues if present. This initial cleaning prevents contaminants from weakening the adhesive bond.

1.2 Remove Staples and Fasteners

Inspect the wood surface for any staples, tacks, or protruding fasteners. Remove all staples and metal objects to create a smooth substrate. Embedded staples can puncture the VHB™ tape liner and compromise adhesion.

1.3 Sand and Reclean (for Used Tables)

If the table is not brand new, lightly sand the wood surface with fine-grit sandpaper to remove old finish layers and create a uniform surface profile. After sanding, repeat the cleaning process with IPA/water until the wood is free of dust and grease.

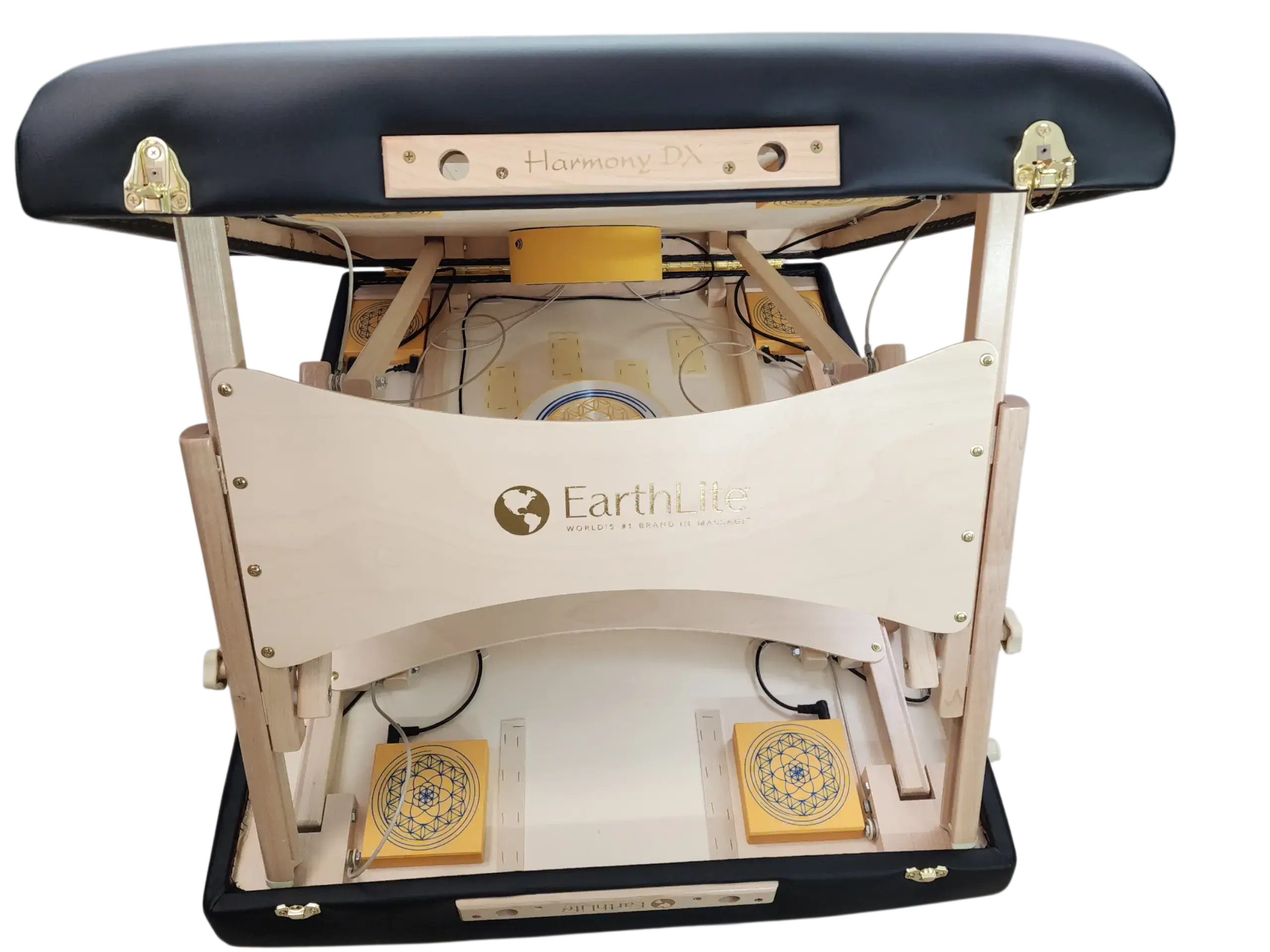

2. Position the Vibroacoustic Attachments

2.1 Cables and Connections

Locate the cables protruding from each vibroacoustic attachment box. Lay out the attachments on the floor to identify correct cable lengths and connector types. Ensure all cables are intact and free of damage before proceeding.

2.2 Placement on Stationary Tables

Place the attachments on the underside of the stationary massage table so that the transducer faces upward toward the client. Position boxes symmetrically along the table length, typically near the headrest and lumbar regions to maximize vibrational coverage.

2.3 Placement on Folding Tables

If using a folding table, align the attachments so that when the table is closed, the boxes nestle side by side without interference from hinges. Verify that the table can fully close with cables routed neatly through any folding seams, avoiding pinch points.

3. Secure Attachments with 3M VHB™ Tape

3.1 Tape Preparation

Important: Leave the protective liner intact until final positioning is confirmed.

3.2 Final Position Check

With the tape-lined attachments held loosely in place, lower the table (or close the folding table) to verify clearance and alignment. Ensure no cables obstruct the closure mechanism and attachments sit flush against the wood surface.

3.3 Apply Permanent Adhesive

Once satisfied with placement, peel away the protective film from the VHB™ tape liner and press each attachment firmly onto the table surface. Apply uniform pressure to fully engage the tape adhesive.

3.4 Cure Time

Do not move the table to its regular working position immediately. Allow the VHB™ tape to set undisturbed for 24 hours while the table remains on the floor. To ensure the strongest bond, place books or other weighted items on top of the transducers during this curing period. Full bond strength develops over 72 hours; however, a 24-hour cure provides sufficient adhesion for normal use.

4. Connect to Amplifier and Test

Cable Connection: Plug each attachment's cable into the corresponding output on the custom amplifier unit.
Power On: Turn on the amplifier and set the intensity to the lowest setting.
Functional Check: Play a test track to verify vibration output from each attachment.
Adjust Settings: Gradually increase intensity to desired levels, ensuring even and balanced vibration across all attachments.

5. Maintenance and Safety Notes

Safety Considerations:

Periodically inspect the tape edges for signs of lifting or dust accumulation, and clean gently with a dry cloth.
Do not exceed recommended vibration intensity levels to avoid injury or equipment malfunction.
If relocation or removal is required, use an oscillating cutting tool with isopropyl alcohol lubrication to carefully separate the tape bond without damaging the table surface.

Following these steps ensures secure installation of the Vibroacoustic Therapy Massage Table Attachments, optimal vibrational performance, and reliable adhesion over time.
